Current Electricity and Electrical InstrumentMedium
Question

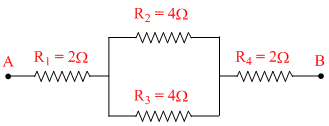

In the given figure, the equivalent resistance between two points A and B will be :
Options
A.4 Ω
B.2 Ω
C.8 Ω
D.6 Ω
Solution
Two 4Ω resistors are in parallel so, their total resistance = 2Ω. Now three 2Ω resistors are in series. Their total resistance will be 6Ω.
