Current Electricity and Electrical InstrumentEasy
Question
The effective resistance between points P and Q of the electrical circuit shown in the figure is
Options
A.
B.
C.2r + 4R
D.
Solution

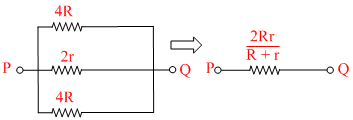

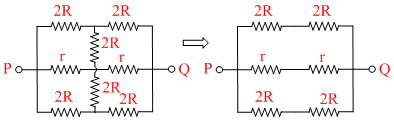

The circuit can be redrawn as follows :
Create a free account to view solution
