Current Electricity and Electrical InstrumentHard
Question

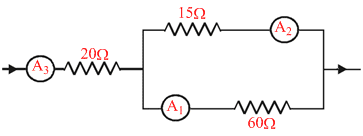

If the reading of ammeter A3 in figure is 0.75 A. Neglecting the resistances of the ammeters, the reading of ammeter A2 will be :
Options
A.1.5 A
B.3 A
C.4.5 A
D.6 A
Topic: Current Electricity and Electrical Instrument·Practice all Current Electricity and Electrical Instrument questions
