CapacitanceMedium

Question

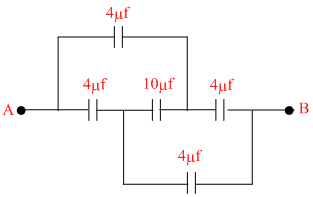

The equivalent capacity between the points A and B in the adjoining diagram will be


Options

A.0μF
B.16μF
C.4μF
D.2μF

Solution


The above arrangement is balanced wheat stone bridge.
Ceq.  =  2μF + 2μF = 4μF

Create a free account to view solution

View Solution Free
Topic: Capacitance·Practice all Capacitance questions
