CapacitanceHard
Question

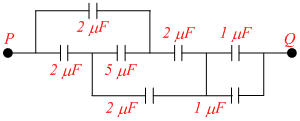

The effective capacitance between the points P and Q of the arrangement shown in the fig. is
Options
A.(1/2) μF
B.1 μF
C.2 μF
D.1. 33 μ
