Alternating CurrentHard
Question

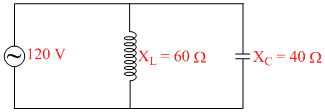

In the figure, the 60 Ω XL and 40 Ω XC are in parallel across the 120 volt source. The impedance of the circuit is:-
Options
A.120 Ω inductive
B.120 Ω capacitive
C.24 Ω inductive
D.24 Ω capacitive
