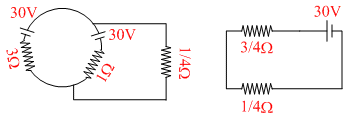

In the following circuit diagram, the current flowing through resistor 1/4Ω is

Options

A.1A

B.60A

C.30 A

D.None of these

Solution

Both 30 V are in parallel
30 - i = 0 ⇒ i = 30 A
