Current Electricity and Electrical InstrumentHard
Question

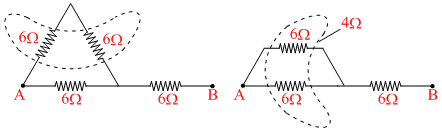

A wire has resistance of 24Ω is bent in the following shape. The effective resistance between A and B is -
Options
A.24 Ω
B.10 Ω
C.
Ω
ΩD.None of these
⇒ Req = 10ΩTopic: Current Electricity and Electrical Instrument·Practice all Current Electricity and Electrical Instrument questions
