Current Electricity and Electrical InstrumentHard

Question

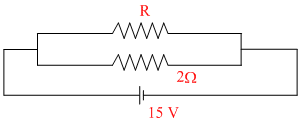

If in the circuit, power dissipation is 150 W, then R is


Options

A.2 Ω
B.6 Ω
C.5 Ω
D.4 Ω

Solution

W = ⇒ R = 6 Ω
