Basic Maths and Units and DimensionsHard
Question
A disc is rolling (without slipping) on na horizontal surface. C is its center and Q and P are two points equidistant from C. Let Vp′ Vq′ and Vc′ be the magnitude of velocities of point P,Q and C respectively, then
Options
A.VQ > VC > VP
B.VQ < VC < VP
C.VQ = VP VC =
VP
VPD.VQ < VC > VC
Solution

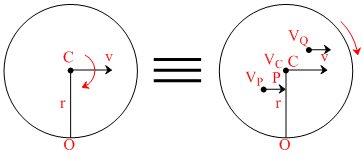

From fig .(I),we have OC = r (radius)
Therefore, v = r
Since, ω = Constant therefore v ∝ r
Now, form fig (II), It is clear that the distance, OP < OC < OQ ⇒ VPVCVQ or VQVCVP
Create a free account to view solution
View Solution FreeTopic: Basic Maths and Units and Dimensions·Practice all Basic Maths and Units and Dimensions questions
