Current Electricity and Electrical InstrumentHard
Question

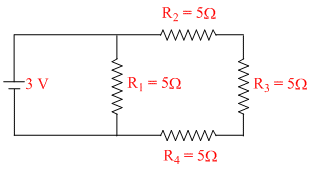

The value of current i in the circuit as shown in figure is :
Options
A.1.8A
B.0.8A
C.0.2A
D.1.6A
Solution
Three 5Ω resistors are in series. their total resistance = 5Ω. Now it is in parallel with 5Ω resistor, So total restance,
R =
∴ I =
= 0.8A
R =
∴ I =
= 0.8ACreate a free account to view solution
View Solution FreeTopic: Current Electricity and Electrical Instrument·Practice all Current Electricity and Electrical Instrument questions
