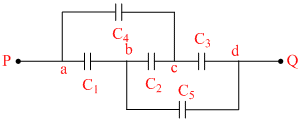

The capacitors C1,C3 ,C4 ,C5 have a capacitance 4&#956;F each and C2 has capacitance 10&#956;F. The effective capacitance between Pand Q will be :

Accepted Answer

The combination forms Wheatstone bridge as
So, central capactor, that is C₂ becomes ineffective. Now eqivalent circut will become as follows.
Now, two C are in series, their equivalent capacity
and them two are in parallel so their equivalent capacity will be

So, toral capacity = C = 4μF
