VectorHard

Question

Given that . Two out of the three vectors are equal in magnitude. the mgnitude of tha third vector is √2 time that of the other two. Which of tha following can be the angles between these vectors ?

Options

A.90o, 135o, 135o
B.45o, 45o, 90o
C.30o, 60o, 90o
D.45o, 90o, 135o

Solution


Let P = Q; R =
Since
These are in equilibrium so, they are represented by three sides of a triangle.

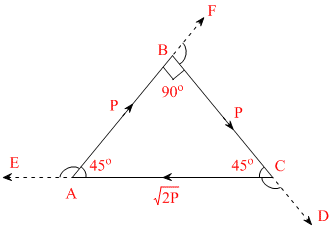

Now, ||= P & || = . it has been depicted in the figure above. The angles of triangle are 90o, 45o & 45o. So angles between P&Q is 90o, angle between Q&R is 135o and angle between R and P is 135o

Create a free account to view solution

View Solution Free
Topic: Vector·Practice all Vector questions
