Basic Maths and Units and DimensionsHard

Question

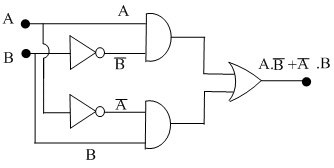

In the combination of the following gates the output Y can be written in terms of inputs A and B as :-

Options

A.

$\bar{A . B}$

B.

$A . \bar{B} . + \bar{A} . B$

C.

$\bar{A . B} + A . B$

D.

$\bar{A + B}$

Solution

Create a free account to view solution

View Solution Free

Topic: Basic Maths and Units and Dimensions·Practice all Basic Maths and Units and Dimensions questions
