NEET | 2016Physics miscellaneousHard
Question

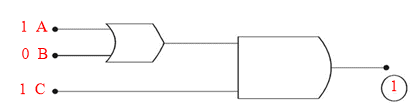

To get output 1 for the following circuit, the correct choice for the input is:
Options
A.
A = 0, B = 1, C = 0
B.
A = 1, B = 0, C = 0
C.
A = 1, B = 1, C = 0
D.
A = 1, B = 0, C = 1
