Fluid MechanicsHard
Question

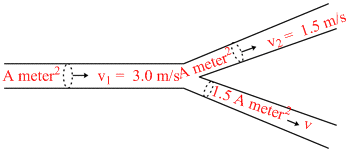

An incompressible liquid flows through a horizontal tube as shown in the figure. Then the velocity ′v′ of the fluid is :
Options
A.3.0 m/s
B.1.5 m/s
C.1.0 m/s
D.2.25 m/s
Solution
from equation of continuity,
(A × 3) = (A × 1.5) + (1.5 A × V)
⇒ V = 1 m/s2
(A × 3) = (A × 1.5) + (1.5 A × V)
⇒ V = 1 m/s2
