CapacitanceHard

Question

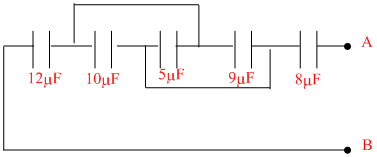

Five capacitors together with their capacitances are shown in the adjoining figure. The potential difference between the points A and B is 60 volt. The equivalent capacitance between the point A and B and charge on capacitor 5μF will be respectively -


Options

A.44μF, 30μC
B.16μF, 150μC
C.15μF, 200μC
D.4μF, 50μC

Solution


⇒ Ceq = 4μF
VA − VB = 60 V
q = Ceq (VA − VB) = 240 μC
Charge on 5μF Capacitor = × 5 = 50 μC
