CapacitanceMedium
Question

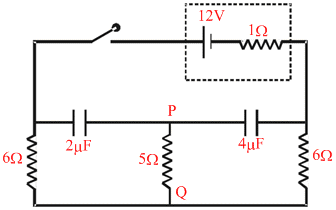

In the circuit shown in figure the capacitors are initially uncharged. The current through resistor PQ just after closing the switch is :
Options
A.2A from P to Q
B.2A from Q to P
C.6A from P to Q
D.zero
Solution
current through resistor PQ is zero just after closing the switch.
