CapacitanceHard
Question

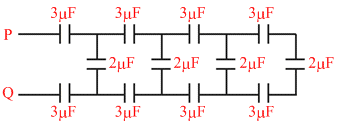

The effective capacity in the following figure between the points P and Q will be -
Options
A.3μF
B.5μF
C.2μF
D.1μF
Solution
⇒ C1 = 1 μF, C2 = 2 + 1 = 3 μF Ceq = 1μF.
