Current Electricity and Electrical InstrumentHard
Question

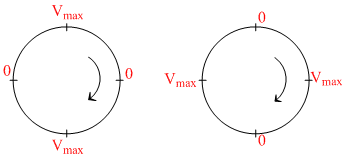

The graph shows current v/s voltage in a series RLC A.C. circuit. The arrow indicates the direction that this curve is drawn as time progresses. In this plot, the
Options
A.current lags the voltage by about 90 degrees
B.current leads the voltage by about 90 degrees
C.current and voltage are in phase
D.current and voltage are 180 degrees out of phase
Topic: Current Electricity and Electrical Instrument·Practice all Current Electricity and Electrical Instrument questions
