Logic gateHard
Question

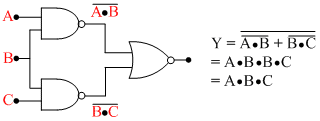

The figure shows two NAND gates followed by a NOR gate. The system is equivalent to the following logic gate -
Options
A.OR
B.AND
C.NAND
D.None of these
