Geometrical OpticsHard
Question

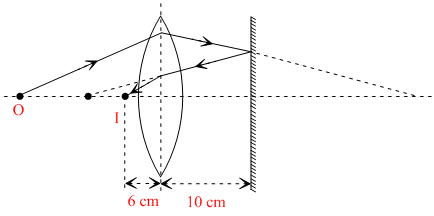

A biconvex lens of focal length 15 cm is in front of a plane mirror. The distance between the lens and the mirror is 10 cm. A small object is kept at a distance of 30 cm from the lens. The final image is
Options
A.virtual and at a distance of 16 cm from the mirror
B.real and at a distance of 16 cm from the mirror
C.virtual and at a distance of 20 cm from the mirror
D.real and at a distance of 20 cm from the mirror
